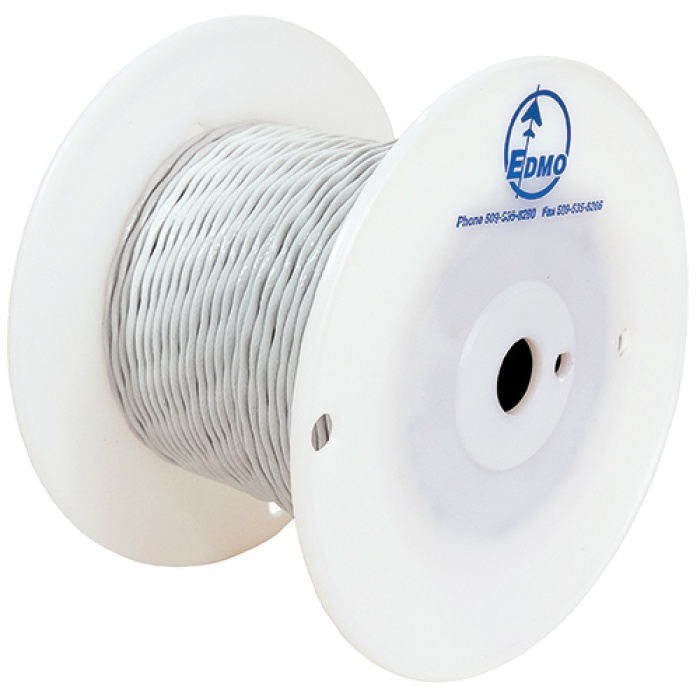

M27500-22TG3T14 Extruded ETFE Tefzel Wire | 22 AWG, 3-Conductor
In stock
M27500-22TG3T14 Extruded ETFE Tefzel Wire | 22 AWG, 3-Conductor Overview:
SAE AS22759/18 is made of special extruded ETFE insulation covering a tin-plated copper conductor. It is light-weight and provides the mechanical toughness and durability suitable for extreme aerospace, military, and commercial environments. This AS22759 wire has a fluoropolymer–insulation and single-conductor offering high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles and areas requiring overload stability, low smoke emission, and fire resistance such as aircraft cabins. Meeting the M27500 specifications, its low voltage and high temperature properties makes this wire & cable ideal for both military and commercial applications — including airframes, avionics, and ground support equipment.
M27500 specifications provide for a wide range of construction options allowing for optimal performance in virtually any environment. Any number of design components are available for users to choose from — including conductor size, number of conductors, insulation type, shield material (or no shield), circuit identification, and single or double walled jacket.
This M27500-22TG2T14 Tefzel™ wire (Generation Pilot # 22TG3T14) meets SAE AS22759/18 specifications and is a 22 gauge, shielded, 3-conductor, ETFE wire. Mil-C M27500 Spec wire & cable.
- Stranded, tin-plated, copper conductor
- Extruded Ethylene tetrafluoroethylene (ETFE) insulation
- Tin-plated, copper-braided shield with 85% coverage
- Thin-walled, Extruded Ethylene tetrafluoroethylene (ETFE) Jacket
- 150°C maximum temperature
- 600 volt rating
SAE AS22759/18 SPECIFICATIONS:
Gauge:
22 AWG
Number of Strands:
19
Strand Size:
34
Outside Diameter (Insulation):
0.041 – 0.045 in
Outside Diameter of Shield:
0.086 in, nominal
Conductor Diameter:
0.030 in
Weight:
3.04 LB/MFT
Impedance (@ 20°C):
16.2 Ω/MFT, maximum
Number of Conductors:
3, (22TG3T14)
Mil-Spec:
M27500
NEMA Type:
WC 27500
Conductor Material:
tin-plated copper
Insulation Material:
extruded ethylene tetrafluoroethylene (ETFE)
Shield Material:
tinned copper braid
Shield Coverage:
85%
Jacket Material:
extruded ethylene tetrafluoroethylene (ETFE)
Temperature:
150°C, maximum
Voltage Rating:
600 V
SAE Specification:
SAE-AS 22759/18
M27500 SPECIFICATIONS:
Temperature Rating:
Up to 200°C (392°F) depending on the type of construction
Insulator:
(RC-06): Polytetrafluoroethylene (PTFE)
(RC-09): Extruded PTFE
(TE-14, TG-14) – Extruded Ethylene Tetrafluroethylene (ETFE)
Conductor:
(RC-06, RC-09): Stranded Silver Coated Copper
(TE-14, TG-14): Stranded Tin Copper
Jacket:
(RC-06): PTFE Tape
(RC-09): Extruded FEP (RC-09)
(TE-14, TG-14) : Extruded ETFE
Other Designations:
NEMA WC 27500, SAE AS22759
Product Codes | |
|---|---|
| Mfr Part No : | M27500-22TG3T14 |
| MIL SPEC : | M27500-22TG3T14 |
| ECCN : | EAR99 |
| MIL SPEC : | M27500-22TG3T14 |
| SCHEDULE B CODE : | 8544.11.0030 |
