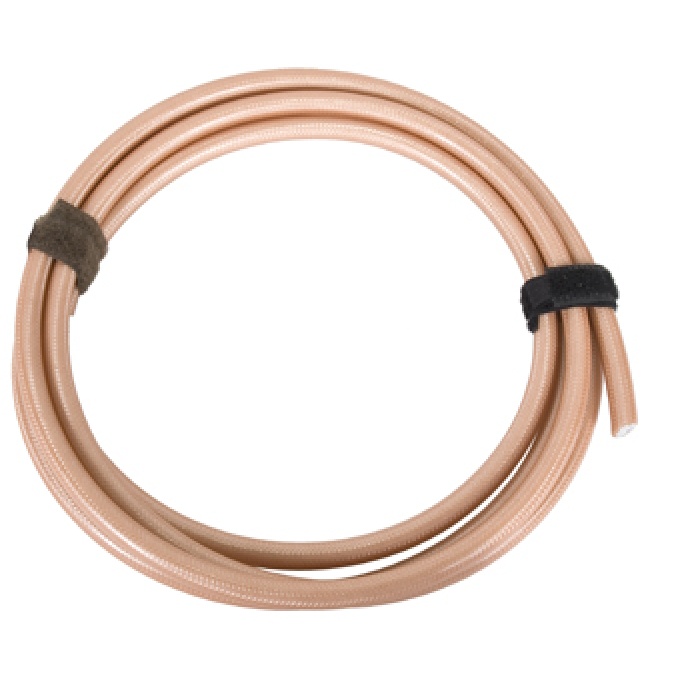

RG-400 Coaxial Cable | MIL-C-17
In stock
RG-400 Coaxial Cable | MIL-C-17 Overview:
RG-400 coaxial cable is manufactured for high temperature, high performance, and low noise applications which meet MIL-C-17 specifications. The RG-400 coaxial cable has a silver-plated, stranded copper conductor and two braided shields.
- Ideal for high performance and high temperature applications
- Meets MIL-C-17 specifications
Center Conductor:
0.0384 in (19/0.008 in)
Dielectric:
0.116 in PTFE
Shield:
SPC (2)
Jacket:
FEP
Overall Diameter:
0.195 in
Minimum Recommended Bend Radius:
1 in
Operating Temperature:
-55°C to 200°C
Weight:
50 lb/MFT
Electrical Characteristics:
Impedance:
50Ω ±2Ω
Capacitance:
29.4 pF/ft
Maximum Voltage:
1900V
Attenuation (typical):
4.3 dB/100 ft (4.5 dB/100 ft, maximum) @ 100 MHz
8.6 dB/100 ft (10.5 dB/100 ft, maximum) @ 400 MHz
14.1 dB/100 ft (18.1 dB/100 ft, maximum) @ 1 GHz
22.6 dB/100 ft (30.2 dB/100 ft, maximum) @ 2.4 GHz
35.6 dB/100 ft (52.1 dB/100 ft, maximum) @ 5 GHz
61.6 dB/100 ft (78.0 dB/100 ft, maximum) @ 10 GHz
Maximum Frequency:
12.4 GHz
Product Codes | |
|---|---|
| Mfr Part No : | M17/128-RG400 |
| MIL SPEC : | MIL-C-17/128G"" |
| ECCN : | EAR99 |
| MIL SPEC : | MIL-C-17/128G"" |
| SCHEDULE B CODE : | 8544.11.0050 |
| UL : | MIL-DTL-17 REVH/UL1971 |
No documentation currently for this item
